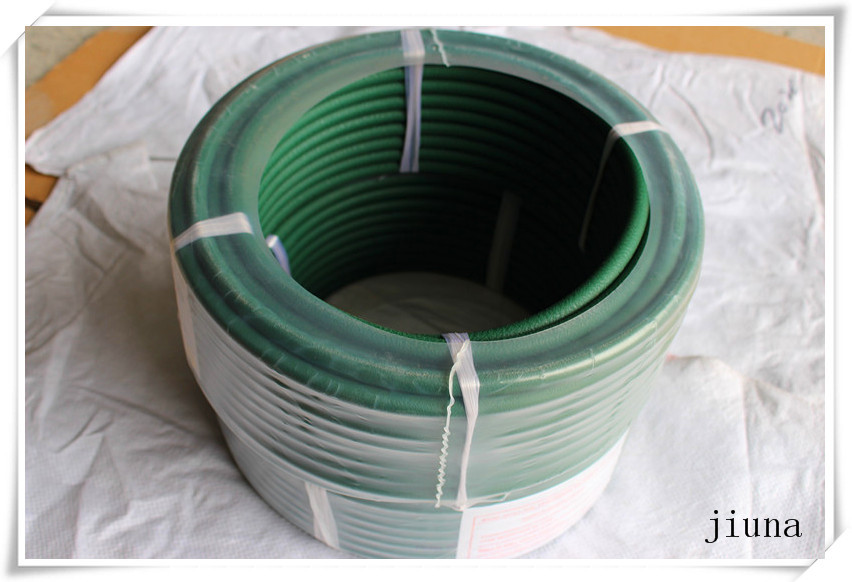

Industrial Transmission Polyurethane Round Belt Conveyor 200m / roll

Wuxi Jiunai Polyurethane Products Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Industrial Transmission Polyurethane Round Belt Conveyor 200m / roll from wholesalers

    Buy cheap Industrial Transmission Polyurethane Round Belt Conveyor 200m / roll from wholesalers
    • Buy cheap Industrial Transmission Polyurethane Round Belt Conveyor 200m / roll from wholesalers
    • Buy cheap Industrial Transmission Polyurethane Round Belt Conveyor 200m / roll from wholesalers
    • Buy cheap Industrial Transmission Polyurethane Round Belt Conveyor 200m / roll from wholesalers
    • Buy cheap Industrial Transmission Polyurethane Round Belt Conveyor 200m / roll from wholesalers

    Industrial Transmission Polyurethane Round Belt Conveyor 200m / roll

    Ask Lasest Price
    Brand Name : JIUNA
    Model Number : Diameter 2mm~20mm
    Certification : ROHS
    Payment Terms : T/T, 50% payment in advance ,50% balance before shipment
    Supply Ability : 96.000 meters per Month
    Delivery Time : Within 5 working days After receipt of your deposit
    • Product Details
    • Company Profile

    Industrial Transmission Polyurethane Round Belt Conveyor 200m / roll

    Industrial Transmission Polyurethane Round Belt Conveyor 200m / roll


    PU Cord Belt Application :

    1. Widely used in textile

    2. printing and packing machine

    3. food & beverage processing

    4. wood processing

    5. paper processing

    6. electronic

    7. post service

    8. tobacco transmission line

    9. Wall floor tile conveying industrial line

    10. Ceramic industry line or polishing line

    PU Cord Properties :

    -High tensile strength

    -Excellent abrasion resistance

    -Good resistance to fuel , oils and oxygen

    -Contains no plasticizer

    -Wide application temperature from -30℃~+80℃

    Items No. φ

    least radius of gyration

    stretch rate

    Maximum tensile rate

    Hardness

    length of rolled

    DIA

    (mm)

    In

    mm

    Stretching rate

    Kg

    Lbs

    Hardness

    (A)

    Roll

    (m)

    2mm

    0.79

    20

    1.5-3%

    0.3

    0.7

    90

    400

    3mm

    0.98

    25

    1.5-3%

    0.7

    1.6

    90

    400

    4mm

    1.38

    35

    1.5-3%

    1.2

    2.7

    85

    200

    5mm

    1.57

    40

    1.5-3%

    2.0

    4.3

    85

    100

    6mm

    1.97

    50

    1.5-3%

    3.2

    7.0

    85

    100

    7mm

    2.17

    55

    1.5-3%

    4.1

    9.0

    85

    100

    8mm

    2.56

    65

    1.5-3%

    5.0

    11.0

    85

    100

    9mm

    2.95

    75

    1.5-3%

    6.8

    15.0

    85

    50

    10mm

    2.95

    75

    1.5-3%

    7.7

    17.0

    85

    50

    12mm

    3.94

    100

    1.5-3%

    12.2

    27.0

    85

    30

    15mm

    4.72

    120

    1.5-3%

    17.7

    39.0

    85

    30

    18mm

    5.71

    145

    1.5-3%

    25.4

    56.0

    85

    30

    20mm

    6.30

    160

    1.5-3%

    31.3

    69.0

    85

    30


    Industrial Transmission Polyurethane Round Belt Conveyor 200m / rollIndustrial Transmission Polyurethane Round Belt Conveyor 200m / roll
