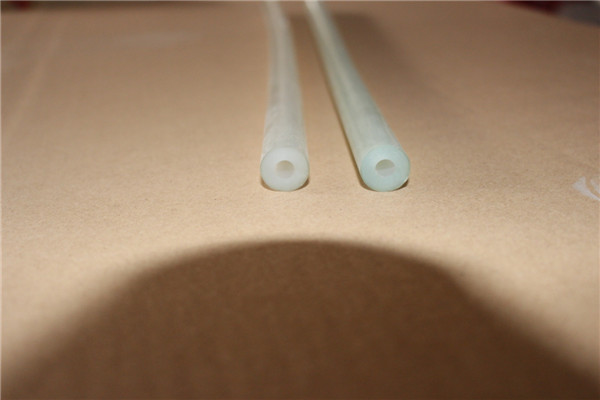

Electrical Resistance Polyurethane Tubing For Air Tools , Low Friction Surface
PU tubing Properties:
Hardness range from 45 shore A to 98 shore A ,
Can absorb shock and reduce the pipe friction.
Wide range of working temperature and pressure.
resistance to chemicals,water ,fuel, oil, fungus.
PU tubing Usage:
Industrial Pneumatic tools, Processing control with potential
Gas pipeline, Auto assembly line, Instrument & equipment, Laboratory,
Lube Transmission line, Robotics, Non-corrosive chemical transmission system, Water transmission & gardening .
Water and other fluid and non-corrosive oil.
Accessories(such as handle)
Metal and electronic products protective coat.
PART NO. | O.D./ I.D. (mm) | BURST PRESSURE (kg./cm2) | WORKING PRESSURE (kg./cm2) | BENDING RADIUS (mm) | STANDARD LENGTH (m) |
PUT-01 | 4 x 2 mm | 30 | 10 | 10 | 100 |
PUT-02 | 6 x 4 mm | 30 | 10 | 16 | 100 |
PUT-03 | 8 x 5 mm | 30 | 10 | 22 | 100 |
PUT-04 | 8 x 5.5 mm | 30 | 10 | 21 | 100 |
PUT-05 | 8 x 6 mm | 30 | 10 | 20 | 100 |
PUT-06 | 10 x 6.5 mm | 30 | 10 | 23 | 100 |
PUT-07 | 10X7mm | 30 | 10 | 25 | 100 |
PUT-08 | 12 x 8 mm | 30 | 10 | 35 | 100 |
PUT-09 | 12 x 9 mm | 30 | 10 | 40 | 100 |
PUT-10 | 12 x 10 mm | 30 | 10 | 45 | 100 |
Products Introduction:
polyurethane tubing is resistant to chemicals, water, fuel, oil and fungus. Any Non-standard Industrial Injection Molding tube can be according to your drawing to costom.
Service commitment:
We have been adhering to the business philosophy of “Quality for
keeping going ,Credit to win the world” committing itself to
providing extensive customers with quality services ,we still can
Provide Technical Product support for customers.
![]() |
