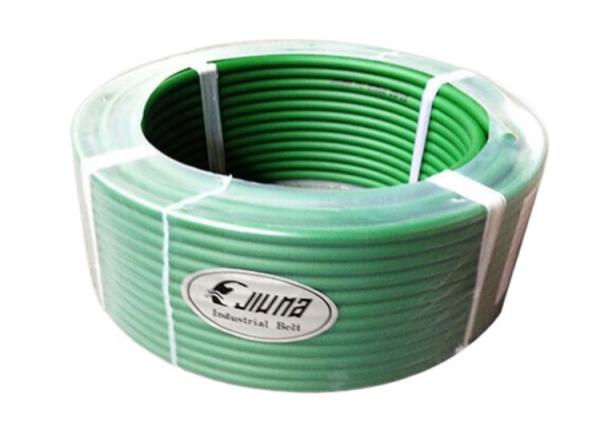

    Polyurethane Rough Round Belt Hardness 88A Transmission Belting 400m / Roll

    Ask Lasest Price
    Brand Name : Jiuna
    Model Number : Diameter 2mm~20mm
    Certification : ROHS
    Payment Terms : T/T, 50% payment in advance ,50% balance before shipment
    Supply Ability : 96.000 meters per Month
    Delivery Time : Within 5 working days After receipt of your deposit
    • Product Details
    • Company Profile

    Polyurethane Rough Round Belt Hardness 88A Transmission Belting 400m / Roll

    Transmission belting and Polyurethane round belt poly cord


    Transmissione belting introduction:

    Polycord round belt is an elastomer, it can alleviate the impact of vibration, assure smooth movement and decrease noise during
    operation. When the large load leads to the belt slip, it will play the role of protecting the machineary. The production and installation precision of polycord round belt is not as strict as the meshing drive, so we can increase the
    belt length to meet the working condition of large cennter distance.


    Features:

    Outstanding abrasion resistance
    High tensile and tear strength
    Resistance to oils, fuels,and oxygen
    Good weatherability and high impact resistance
    Low compression set


    Application:

    Newspaper conveying,
    Packing machines,
    Ceramic and stoneware processing plants,
    Floor and roof tiles conveying,
    Wood Working machineries,
    Textile machines,
    Paper industry machines,
    Food grading machines, other food processing machines.


    Items NO.Φ

    Least radius of gyration

    Stretching rate

    Maximum tensile rate

    Hardness

    Length of rolled

    DIA(mm)

    In

    mm

    %

    Kg

    Lbs

    Shore( A)

    Length of rolled

    2mm

    0.79

    20

    1.5-3%

    0.3

    0.7

    95

    400

    2.5mm

    0.87

    22

    1.5-3%

    0.4

    0.9

    95

    400

    3mm

    0.98

    25

    1.5-3%

    0.7

    1.6

    90

    400

    3.5mm

    1.18

    30

    1.5-3%

    0.95

    2.1

    90

    400

    4mm

    1.38

    35

    1.5-3%

    1.2

    2.7

    90

    200

    5mm

    1.57

    40

    1.5-3%

    2.0

    4.3

    90

    100

    6mm

    1.97

    50

    1.5-3%

    3.2

    7.0

    90

    100

    7mm

    2.17

    55

    1.5-3%

    4.1

    9.0

    90

    100

    8mm

    2.56

    65

    1.5-3%

    5.0

    11.0

    90

    100

    9mm

    2.95

    75

    1.5-3%

    6.8

    15.0

    90

    50

    10mm

    2.95

    75

    1.5-3%

    7.7

    17.0

    90

    50

    12mm

    3.94

    100

    1.5-3%

    12.2

    27.0

    90

    30

    15mm

    4.72

    120

    1.5-3%

    17.7

    39.0

    90

    30

    18mm

    5.71

    145

    1.5-3%

    25.4

    56.0

    90

    30

    20mm

    6.30

    160

    1.5-3%

    31.3

    69.0

    90

    30
